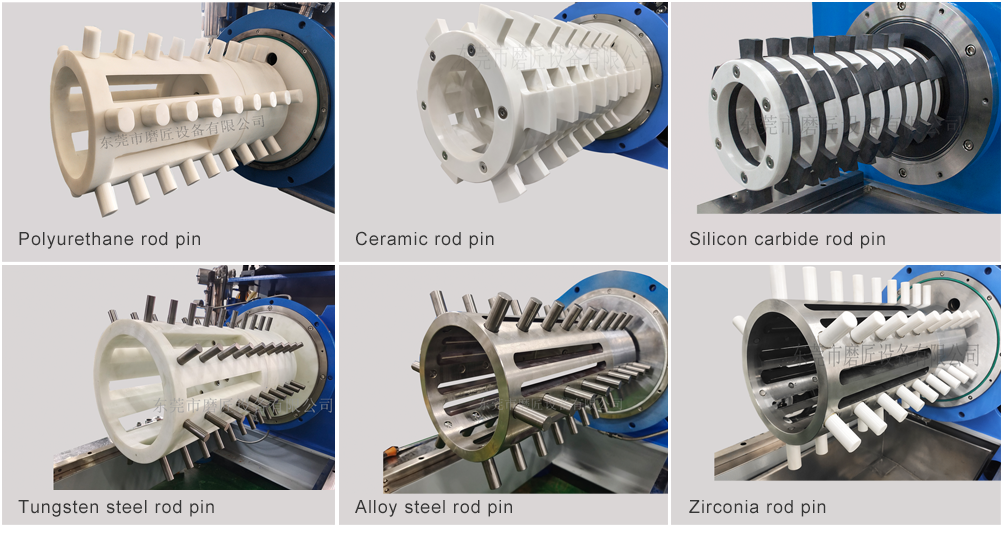

This sander adopts double-end mechanical seal, frequency converter speed regulation, silicon carbide ceramic grinding chamber material, non-blocking large flow dynamic centrifugal discharge system, and can select corresponding chamber material for different oily and water-based slurry. The corresponding mechanical seal material is suitable for grinding 10 micron-0.6 microns slurry such as top paint, with high efficiency and good particle size distribution effect.
The designed cavity material is universal in water/oil
The mechanical seal can withstand 6kg pressure when running at high speed
Dynamic centrifugal separation system with large flow and no blocking
The main engine speed is controlled by frequency converter
The particle size distribution is very narrow during efficient grinding
Strong cooling system can ensure low temperature grinding of materials
Operation panel and configuration can be customized according to user requirements
Grinding fineness range from micron to sub-nanometer
Can efficiently and stably use 0.3 mm and above grinding media
| Model | Power(KW) | Volume(L) | Abrasive（mm） | Capacity | Size（mm） |
| MJ-BD3L | 11 | 3 | ≥0.3 | 10-100L/H | 1300L*710W*1600H |
| MJ-BD6L | 15 | 6 | ≥0.3 | 50-300L/H | 1300L*710W*1600H |
| MJ-BD10L | 22 | 10 | ≥0.3 | 100-500L/H | 1430L*860W*1780H |
| MJ-BD20L | 30 | 20 | ≥0.3 | 200-800L/H | 1430L*860W*1780H |
| MJ-BD30L | 37 | 30 | ≥0.3 | 300-1200L/H | 1680L*1100W*1600H |
| MJ-BD60L | 75 | 60 | ≥0.3 | 500-2000L/H | 2310L*1280W*2150H |
| MJ-BD100L | 110 | 100 | ≥0.3 | 1000-3000L/H | 2610L*1380W*2250H |
| MJ-BD150L | 160 | 150 | ≥0.3 | 1500-5000L/H | 2810L*1580W*2650H |
Paint and ink: anti-corrosion paint, functional paint, special ink, screen printing ink
Industrial coatings: water-based industrial finish, automobile repair paint, container paint, mechanical finish
Printing materials: flexographic printing ink, gravure printing ink, carton ink, thermosensitive paper pulping
Coating slurry: nano-alumina slurry, PVDF slurry, zinc dioxide slurry, magnesium hydroxide
Battery materials: carbon nanotubes, graphene, lithium iron phosphate, nano silicon oxide, conductive carbon black
Other industries: nanometer new materials, nanometer barium sulfate, chocolate, additives, ATO, MLCC
